The high capacity ALIMAK SE-H TM & SE-H Ex TM goods and passenger elevator series fits in all kinds of industrial applications and are built to last in the most extreme environments. Alimak SE-H TM elevators are designed to transport materials weighing up to seven tonnes when required, and available for both safe areas as well as hazardeous areas.
Benefits at a glance
Benefit from a highly useful variety of 35 large elevator car sizes, varying from the smallest providing 4.7 m2  (50 sq. feet) floor space to the largest car delivering 11.9 m2 (128 sq. feet) floor area
Leverage a payload capacity of up to 7,000 kg (15,400 lb)
Designed for harsh environments
Explosion protected option
Exploit the forklift truck loading functionality that means even a forklift or a pallet jack can be transported to different levels
Plus, save time and money by removing the need for machine rooms and costly shafts
Elevator design
The enhanced efficiency delivered by the ALIMAK SE-H TM & SE-H Ex TM goods and passenger elevator series stems in part from the unique modular design of the elevator cars that provides a remarkable 35 different car sizes with floor spaces up to 11.9 m (128 sq. feet). Made of extruded anodized saltwater-proof aluminum and hot dipped galvanized steel, the Alimak SE-H TM elevator car is built to last in the most extreme environments. The elevator has been designed with two mast towers to carry the large elevator car and a sync axis, ensuring that the car always travels straight. Alimak SE-H TM elevator series are push button operated from car and landings and has a modern collective control system with internal fault diagnostics.
Compact, powerful drive units
Two compact and powerful drive units are located on top of the car itself, which means more useable space as there is no need for a separate machine room. Each drive comprises of four or six electric drive motors with a choice of direct-on-line control (DOL) or frequency control (FC). The FC drive not only ensures smooth acceleration and deceleration, but also reduces wear and tear on elevator components such as brakes.
Safety
The TM goods and passenger elevator series incorporates all the safety features that have made Alimak elevators a benchmark for the elevator industry worldwide. The unique progressive Alimak safety device comes into operation should the elevator exceed the rated speed, bringing the car to a smooth stop. The elevator is also fitted with an overload sensing device and a centrifugal brake that allows passengers to be lowered to the landing below in the event of a power failure.
Forklift truck loading
The optional car to landing lock device is used when fork-lift loading is demanded. The elevator has been designed in such a way that all of the forklifts in the world normally used for this kind of application fit in the car enabling easy transport of forklifts between landing levels. The load carrying structure is enhanced by the stiff car floor, which is welded of formed steel sheeting for additional strength.

主要优势
Benefit from a highly useful variety of 35 large elevator car sizes, varying from the smallest providing 4.7 m2  (50 sq. feet) floor space to the largest car delivering 11.9 m2 (128 sq. feet) floor area
Leverage a payload capacity of up to 7,000 kg (15,400 lb)
Designed for harsh environments
Explosion protected option
Exploit the forklift truck loading functionality that means even a forklift or a pallet jack can be transported to different levels
Save time and money by removing the need for machine rooms and costly shafts
Modular design delivering you a wide range of car sizes and capacities
Drive machinery located on the car means no costly machine room is required
Fully collective lift control system
Durable materials: extruded aluminium car wall panels with car support frame and mast sections of hot dip galvanised steel. All stainless steel electrical cabinets and landing control boxes. Optional stainless steel cars
Wide range of optional equipment and functions deliv--ering you the right equipment for each individual task
Remote Monitoring System – The online A3 remote control can also be added to monitor lift operations 24/7 and pro-actively trace faults should they arise to avoid downtime.

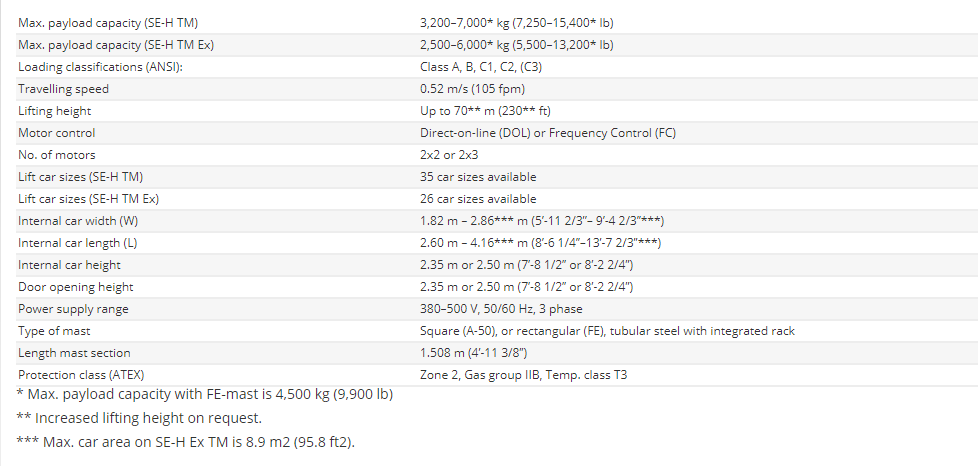

技术规格
